Overview

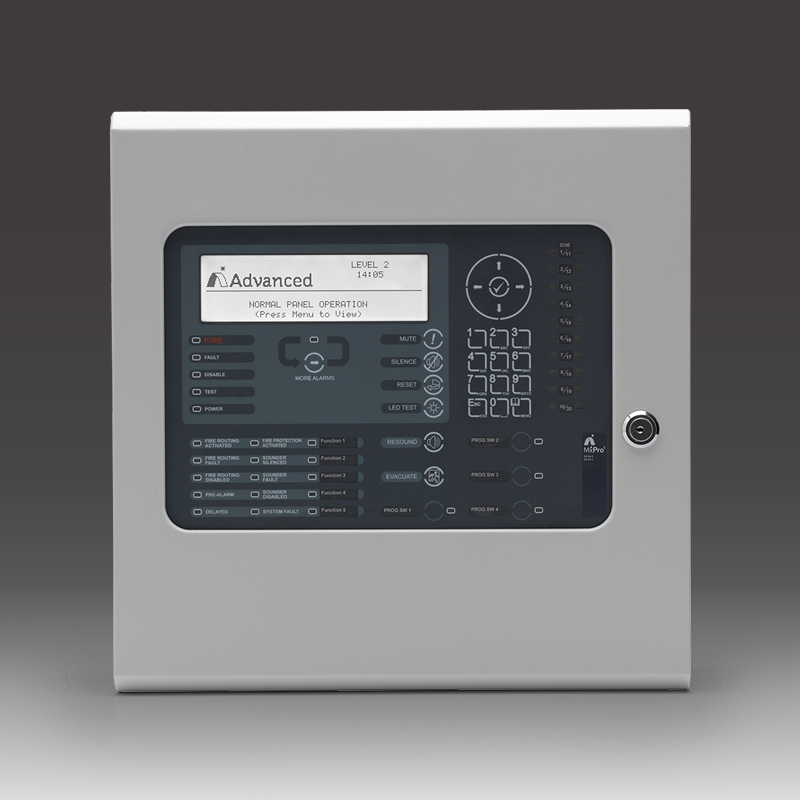

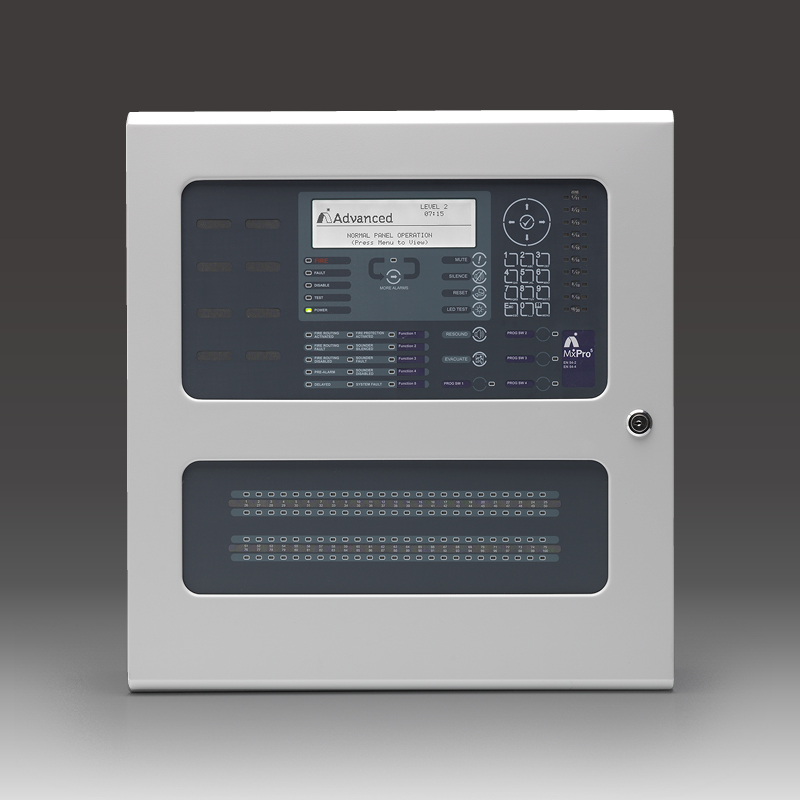

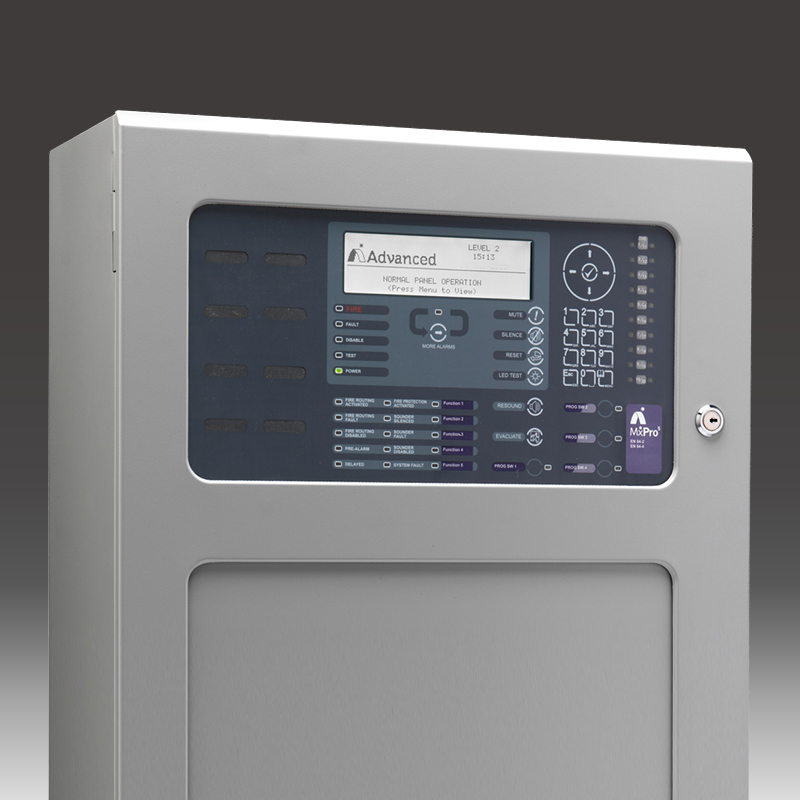

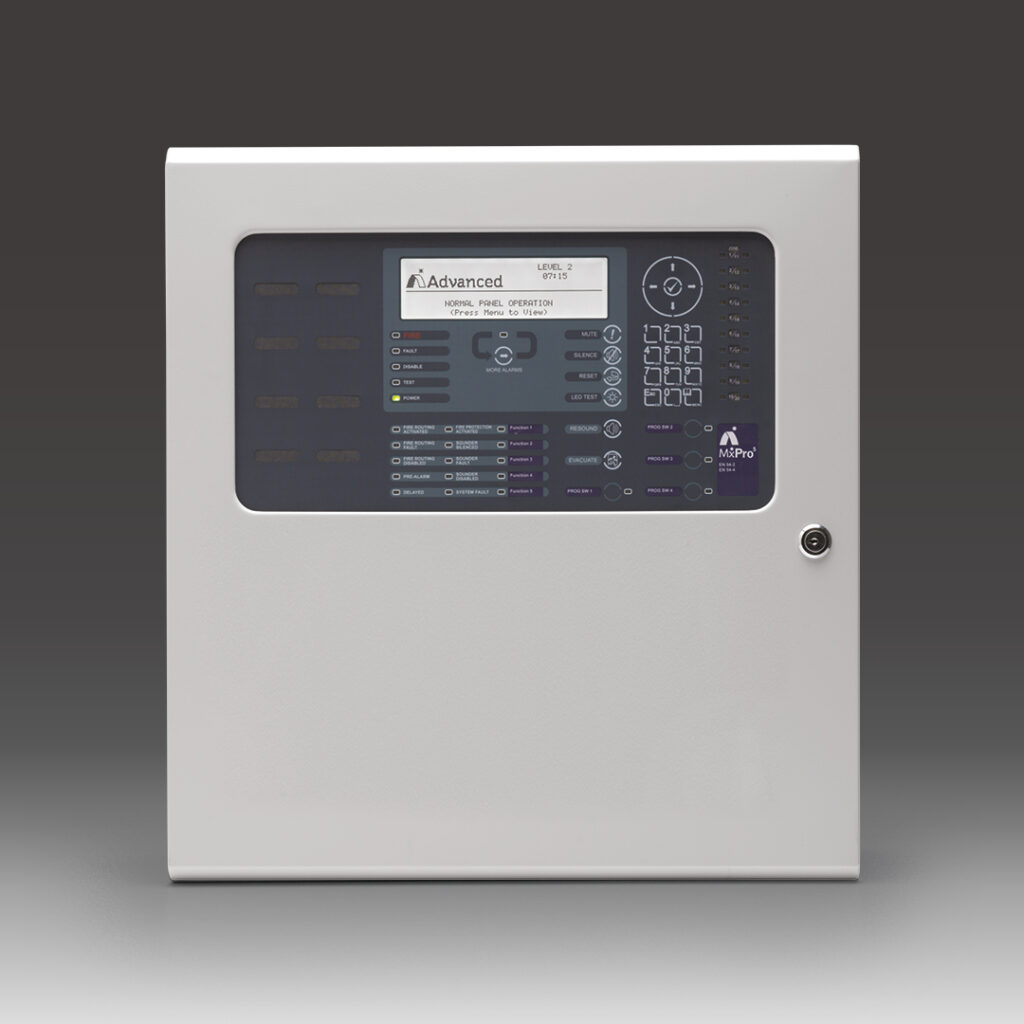

Our robust and reliable Advanced MxPro 5 addressable fire panels are known and trusted for their exceptional performance, quality and ease of use.

Available in a variety of formats and compatible with the leading device brands, the Advanced MxPro 5 offers highly adaptable features for maximum freedom and design flexibility.

Powerful false alarm management, 200-node networking capacity, and a handy ServiceTool are just some of this panel’s many advantages.

Approved to EN54 Parts 2, 4 and 13, MxPro 5 protects people and property across a wide range of settings.





Freedom from false alarms

A standout feature of the Advanced MxPro 5 range is its powerful false alarm management and reduction capabilities. AlarmCalm reduces the disruption, distress and damage to reputations that unwanted alarms can bring. Discover our easy-program solution to one of the fire industry’s most enduring problems.

How MxPro 5 will help you...

Packed with premium features

  • AlarmCalm software effectively minimises unwanted alarms
  • Monitor the circuit from any panel or remote terminal and see a complete device history
  • USB and RS232 PC connections built in and extensive peripheral range available
  • Customisation fire panel screen for displaying logos/messages, plus 4 programmable push buttons
  • 20 built-in, programmable LEDs as standard – no need to buy a separate LED zone card
  • On-board/optional remote battery temperature sensor for optimum operational efficiency and life

Easy to install and use

  • Easy-fix removable chassis and intuitive software make Advanced MxPro 5 fire panels quick and easy to set up
  • Powerful networking, extensive configuration options and comprehensive cause and effect put you in complete control
  • Intuitive controls and menus, with simple click and select programming, for quick commissioning
  • The panels support intelligent remote terminals, IP Gateway, I/O drivers and BMS interface, for integration with building management systems

Scalable and versatile

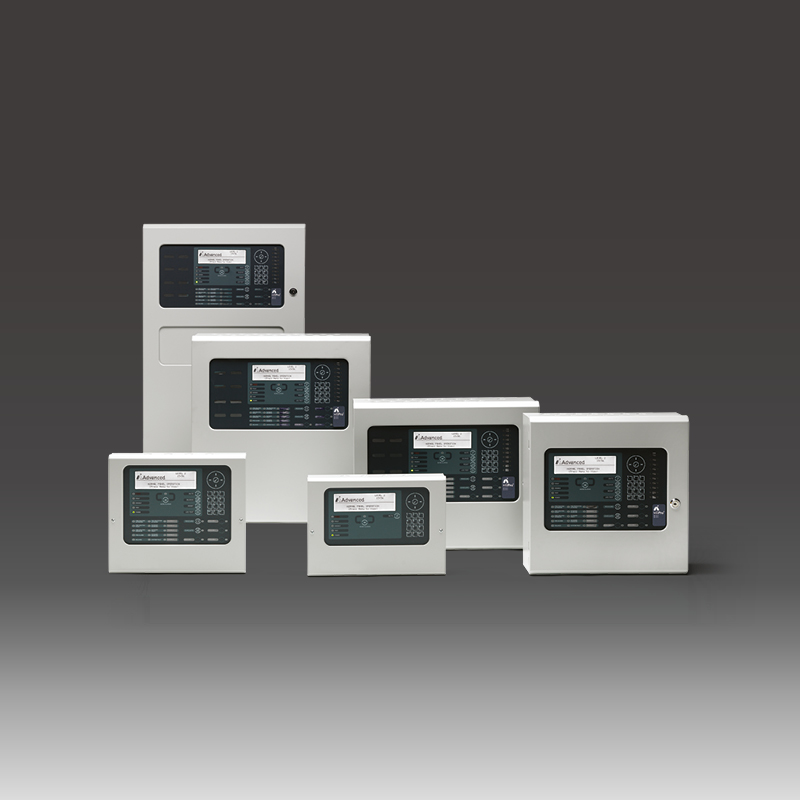

  • One, two, four and eight loop formats to suit your needs and budget
  • Works with leading detector protocols including Apollo, Argus, Hochiki and Nittan for design flexibility
  • Remote display terminals available including TouchControl with interactive maps and zone plans, ideal for public areas
  • Up to 254 devices per loop (depending on protocol) and overall capacity of 200,000 devices per network
  • Easy to network with up to 200 network nodes and 2,000 fire detection zones
  • Panels support wired, wireless and hybrid devices

In-built diagnostics

  • ‘Scope on board’ provides readings on the panel from any loop, making it easy to identify and investigate any issues
  • A network diagnostic tool prevents transmission of fires and faults across the network
  • Built-in multimeter measures all voltages and currents across the system in real time, to speed up the commissioning process

Powerful, flexible service reporting

  • The inbuilt ServiceTool saves you time and money by providing easy access to historic and real-time device data
  • Demonstrate proof of servicing, download customisable service reports, inspect device history and keep track of service schedules for safety and compliance
  • Customisable data filters help you focus on potential trouble spots and ensure they’re checked and tested during servicing
  • Predict which devices are becoming contaminated so you can clean/replace them before they cause a false alarm
  • 5,000 event and diagnostic, and 500 fire event log entries, for comprehensive tracking and auditing

EN 54 Part 13 peace of mind

  • EN 54 Part 13 compliance ensures that a fire system will perform effectively during a fire situation. Advanced was one of the first manufacturers in the UK to meet the standard
  • It involves rigorous third-party testing to prove that individual parts of a fire system will work together safely and efficiently when combined into one system
  • EN 54-13 is mandated in several European countries, but even where it’s not compulsory, it’s a mark of system performance and reliability
  • Download our free booklet to find out more about EN54
