Fire alarm panel zones are a critical component of a conventional fire alarm system and play a vital role in ensuring the safety of buildings and their occupants. The number of zones required to adequately monitor and protect a building depends on its size and unique specifications. This guide will help you understand how these zones work and the number of zones required, whether the solution is a 2-zone fire alarm panel, 4-zone fire alarm panel, or a 32-zone panel for a more complex site.
In this article, we’ll cover:
- Overview of fire alarm panels
- What are fire alarm panel zones: explaining all about zones and why they are used
- Types of zones: an overview of zones used in fire alarm systems
- How many zones do you need in a fire alarm system? Explaining four zone fire alarm panels and more
What is a fire alarm panel?

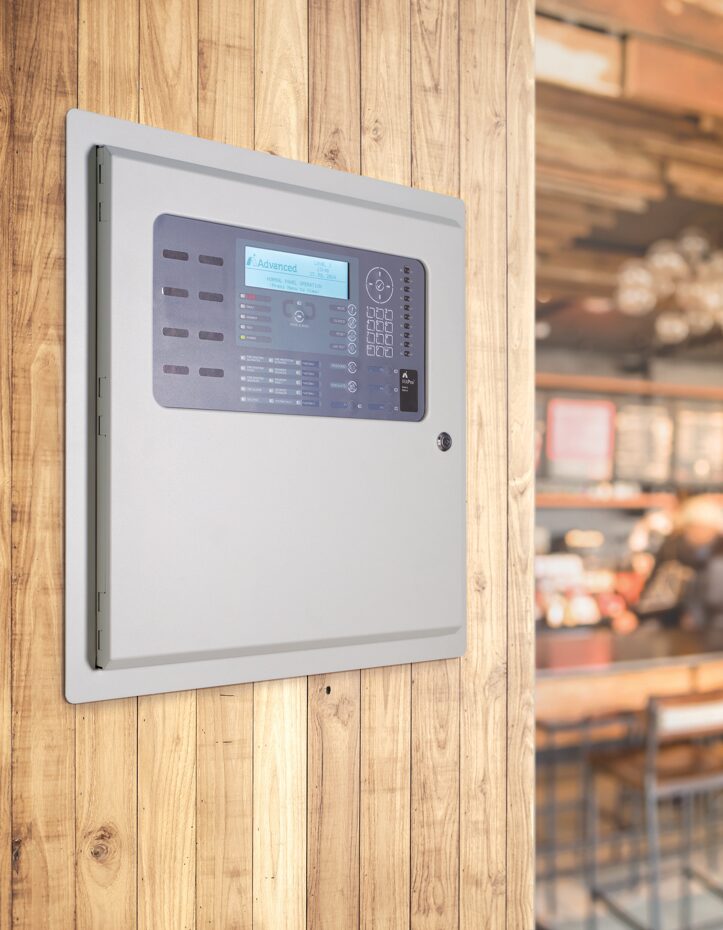

A fire alarm panel is the central hub of a fire alarm system. It is responsible for monitoring and controlling the various components of the system, such as smoke detectors, heat detectors, and manual call points. The primary purpose of a fire alarm panel is to detect fire or smoke and alert occupants and emergency services to ensure timely evacuation and response. The number of zones a panel can support is usually clear from the outset. For example, a two zone fire alarm panel can support two zones, a four zone fire alarm panel can support up to four zones, and so on.
What are fire alarm panel zones?
In the context of fire alarm panels, zones refer to specific areas or sections within a building that are monitored individually by the fire alarm system. Each zone is equipped with detectors and alarm devices that help in identifying the exact location of a fire or fault. This zoning system is essential for effective fire detection and response, especially in large buildings or complexes and, depending on your location, is often a legal requirement.
Why are zones used in fire alarm systems?
Using zones as part of a fire protection system can help identify the location of an incident, enabling faster and more efficient responses, as well as allowing greater control over the system.
- Emergency location: Using zones makes it easier to identify where an incident has occurred. In a large building, knowing which zones are affected can significantly improve response times and effectiveness.
- Efficient response: In buildings with complex layouts or multiple floors, knowing which zone the fire has occurred in ensures fire fighters can target their efforts more effectively, reducing response time and potential damage.
- System management: Zones can help simplify the management and maintenance of a fire alarm system. For example, if a fault occurs, it can be isolated to a specific zone, making it easier to identify and rectify the issue without impacting the wider system.
Types of fire panel zones
There are several types of zones used in fire alarm systems, each serving a specific purpose. In the UK, these zones must be displayed in a clearly defined zone plan to comply with the requirements of BS 5839. The zone plan assists occupants and emergency services to navigate the building in the event of an emergency.
Detection zones
These are areas monitored by detectors such as smoke detectors, heat detectors and manual call points. When a fire is detected in a detection zone, the system’s control panel is triggered to initiate an alarm.
Alarm zones
These zones are used in the event of a phased evacuation. They contain alarm devices like sirens and strobes to alert occupants of a fire. Alarm zones ensure that people in different parts of the building are notified promptly and clearly.
Control zones
These zones manage additional devices such as a fire suppression system, which can be activated to control or extinguish a fire in a specific area. For example, a historic building may utilise a gas suppression system to avoid water damage impacting irreplaceable artifacts.
Evacuation zones
On a zone plan, evacuation zones indicate designated areas for safe evacuation during an emergency. These zones are critical for ensuring that occupants can exit the building quickly and safely.
How many zones do you need in a fire alarm system?
Determining the right number of zones is essential for ensuring effective fire detection quick response, and compliance with fire safety regulations. There are a range of factors to consider, including:
- Building size: Larger buildings typically require more zones to ensure comprehensive coverage. A medium sized office building may only require a 4 zone fire panel, while a multi-storey office building might need eight or more zones, allowing zones to be allocated to different floors or sections of the building.
- Building layout: Complex layouts with multiple floors, wings or isolated areas need additional zones for effective protection, while areas such as stairwells, basements and void spaces often legally require separate zones.
- Occupancy type: Different types of buildings, such as residential, commercial and industrial, have varying requirements for fire safety and monitoring.
- Regulatory requirements: Local laws or even insurance policies may mandate a minimum number of zones, or specific zoning requirements. It is best practice to consult with a fire safety professional to ensure compliance with relevant regulations.
When would you use a 2 zone alarm panel?
A small office building with a single floor and a few rooms might use a two zone alarm control panel. For example, Zone 1 could cover the main office area, while Zone 2 covers the conference room and restrooms. Other applications requiring a two zone fire panel may include a small café or retail shop.
When would you use a 4 zone alarm panel?
A four zone alarm control panel might be an appropriate solution for a medium-sized retail shop with two floors. Zone 1 could cover the ground floor sales area, Zone 2 the first floor sales area, Zone 3 the storage room, and Zone 4 the office and staff areas. Four zone fire panels are also often found in medium-sized office buildings and small warehouses.
When would you use a higher number of zones?
A large hotel with multiple floors and various sections might require a more complex system with multiple zones. Each floor could be designated as a separate zone, with additional zones for common areas like the lobby, restaurant, and conference rooms.
Conclusion
As you have learned from reading this guide, fire alarm panel zones are more than just technical jargon – they are the backbone of an effective fire detection and response system. While four zone fire panels are ideal for small to medium-sized buildings, offering simplicity and cost-effectiveness, larger and more complex buildings have additional requirements. If you’re unsure how many zones your building needs, don’t guess. A professional fire risk assessment can provide tailored recommendations based on your building’s unique characteristics and local regulations.
