Fire detection alarm systems are one of the most important safety features in any building. Whether you’re at work, the supermarket, or the cinema, you are protected by a system silently monitoring for signs of fire.
Their job is simple but critical: detect a fire early and alert people quickly so they can get to safety and emergency services can respond. Even a few seconds of early warning can make a huge difference in preventing injuries, saving lives, and reducing damage.
In this guide, we’ll break down how these systems work and help you understand the technology that helps keep us safe every day. We’ll cover:
- What is a fire detection alarm system? Overview of fire detection and fire alarm systems.
- Detectors: Discover the different types of fire alarm system detector.
- How do fire detection alarm systems work? Breaking down the chain of events that occurs when a fire is detected.
- System integration: Learn about some of the other safety and building management systems that can be integrated into a fire alarm system.
What is a fire detection alarm system?
A fire system is a linked group of equipment designed to identify the early signs of fire, such as smoke, heat, or flame, and initiate a series of alerts and responses to minimise risk to people and property. Ultimately, the job of a fire alarm system is to provide early warning of a fire, enabling safe evacuation, fire suppression and emergency response before it can cause significant harm.
Key components
Detectors
The devices that sense specific fire indicators. Detectors come in a huge range of colours, shapes, sizes and types depending on the application and regulatory requirement, and many environments require specialist detector technology. In addition to basic smoke and heat detectors, types include ionization, photoelectric, thermal, and multi-sensor detectors. Depending on the system, detectors may be hard-wired or wireless.

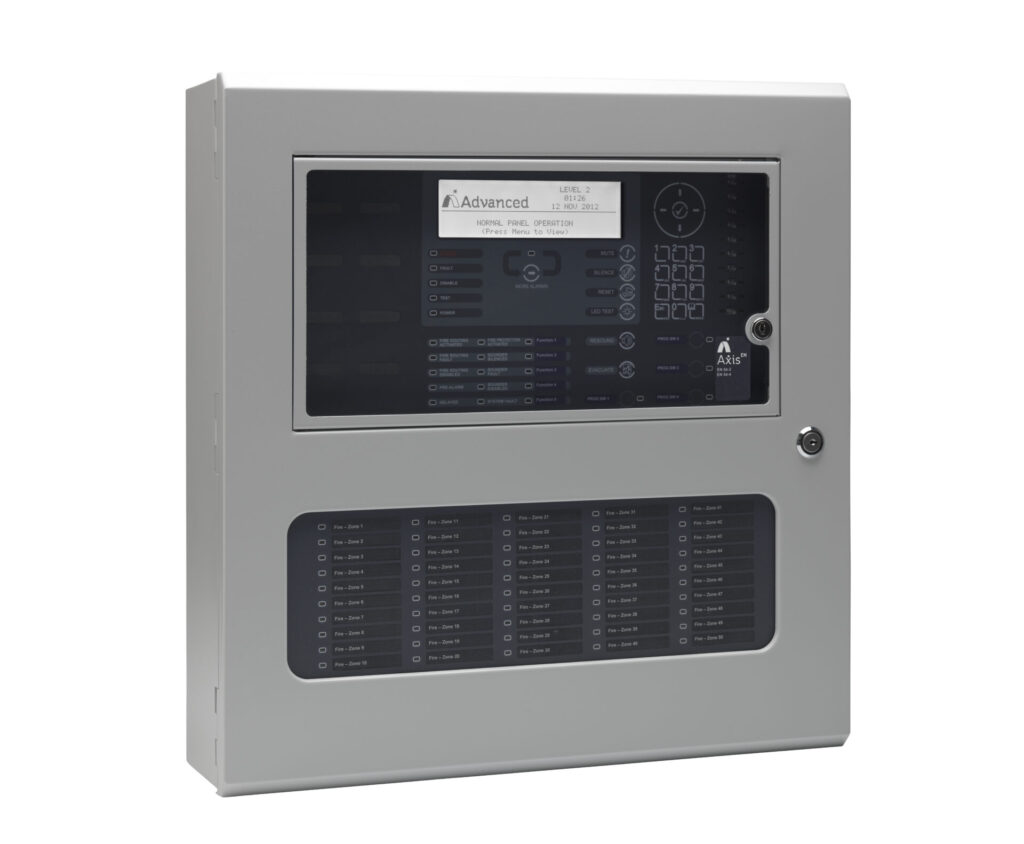

Fire alarm control panel (FACP)
The control panel is the fire detection alarm system’s central processing unit, managing input from detectors and triggering outputs. The FACP often includes a user interface for system status, fault alerts and manual controls.

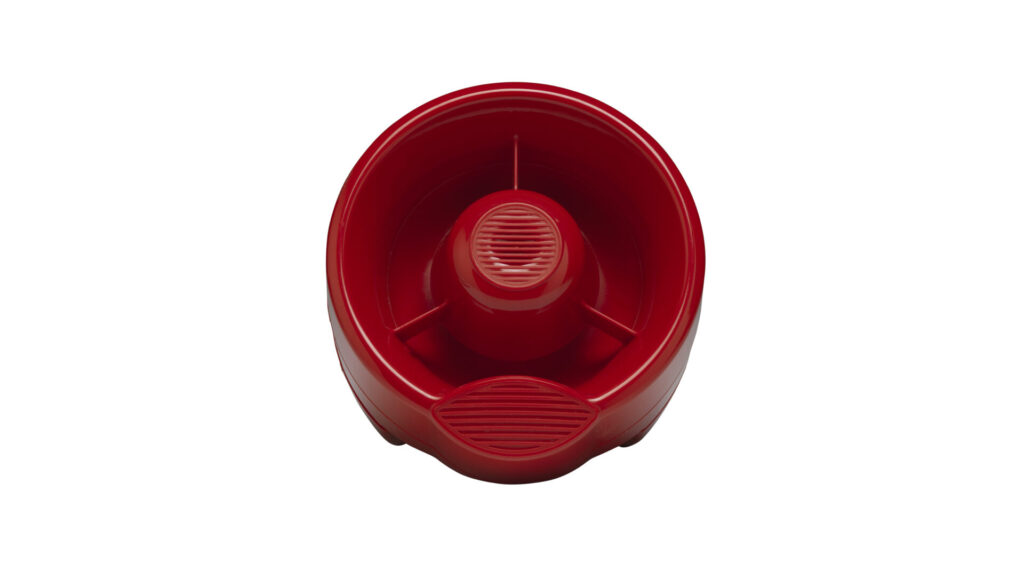

Alarm notification appliances

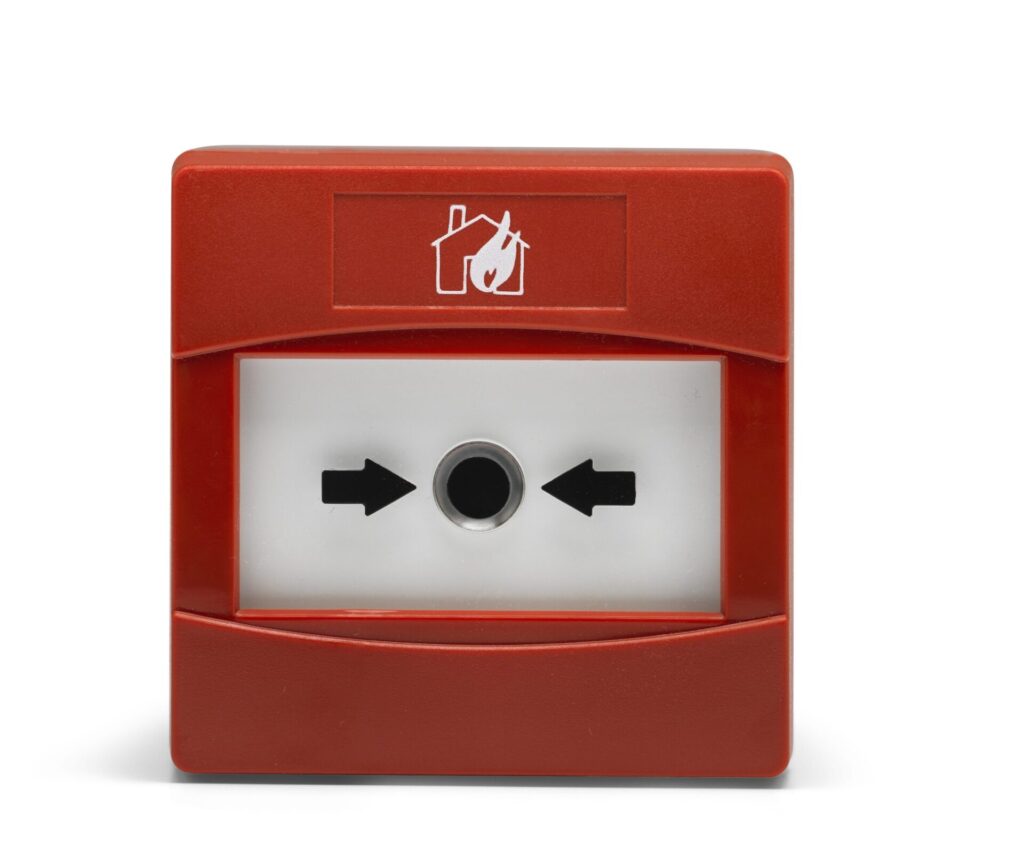

These are devices that alert occupants to a fire through audible, visual or tactile signals. The type of alarm notification depends on the building type and local legislation, but examples include sirens, strobe lights and voice evacuation systems.Manual call points
Call points, such as break glass units, allow occupants to manually trigger the alarm if they encounter a fire.
Communication interfaces
These enable integration with other systems, such as building management systems (BMS), sprinklers, and remote monitoring services.Types of system
Conventional systems
Divide the building into zones with detectors in each zone sharing wiring.Addressable systems
Each device has a unique address allowing pinpointing of exact location and status.Wireless systems
Devices use radio frequency communication so do not need to be hard wired, allowing greater flexibility of installation location.Fire alarm system detectors
Fire detectors are the sensory components of a fire alarm system. Each type is designed to detect specific signs of fire, such as smoke particles, heat, or visible flames. Choosing the right fire alarm system detector depends on the environment, the type of fire risk, and how quickly detection is needed. Types of detectors include:

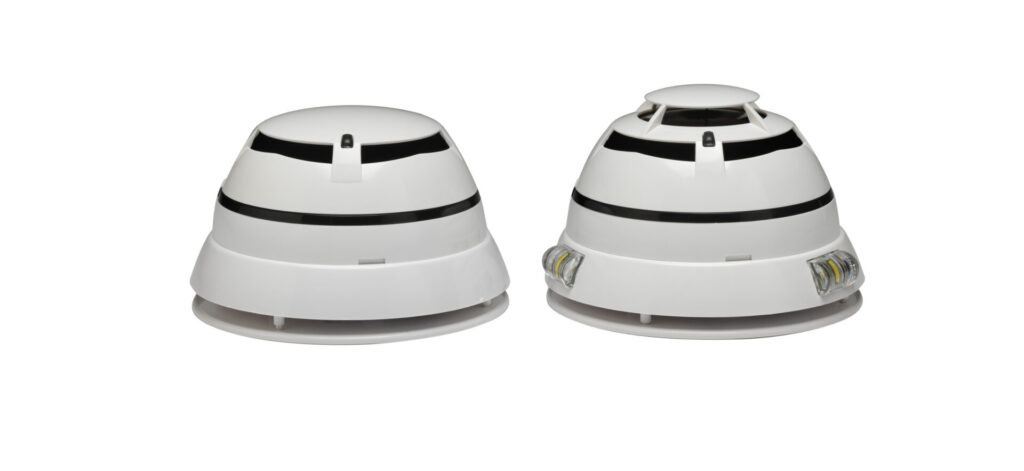

Smoke detectors
Smoke detectors are the most common type and are designed to sense airborne particles produced by combustion. There are two main types of smoke detector:
Ionisation smoke detectors use a small amount of radioactive material between two electrically charged plates. When smoke enters it disrupts the ion flow, triggering the alarm.
Photoelectric smoke detectors use a light beam and sensor. The alarm is triggered when smoke scatters the light beam and hits the sensor.
Heat detectors
Heat detectors respond to changes in temperature. Fixed temperature detectors trigger an alarm when the temperature exceeds a preset threshold, whereas rate-of-rise (ROR) detectors are triggered when a rapid increase in temperature is detected.
Flame detectors
Flame detectors identify the presence of flames by sensing the light they emit. Depending on the type, they are designed to detect infrared (IR) or ultraviolet (UV) radiation, or a combination of both.
Multi-sensor detectors
These detectors combine two or more sensing technologies. For example, smoke and heat.
Specialist detectors
Hazardous environments often require specialist detection technology. Fire detection alarm systems protecting these areas often need to meet separate regulatory requirements or incorporate detection of specific hazardous substances. For example, industrial facilities such as chemical plants or refineries dealing in flammable gases, and underground travel systems with limited ventilation and high smoke retention.
How do fire detection alarm systems work?
Fire detection systems operate through a chain of events that begins with sensing a fire-related condition and ends with alerting occupants and emergency services.
1. Detection of fire indicators
The fire alarm system detector(s) determine that a reading is abnormal enough to indicate a potential fire, or a manual call point is activated.2. Signal transmission to the control panel
A signal is sent to the panel identifying either the zone or device where the fire is detected. The signal is transmitted via wired loops, wireless signals or networked protocols, depending on the system type.3. Signal processing and decision logic
The control panel evaluates the incoming signal using pre-programmed logic to verify the signal. Depending on how sophisticated the system is, it may require confirmation from multiple detectors (cross-zoning logic) or use additional technology to reduce false alarms.4. Alarm activation
If the signal is validated, the fire alarm system activates alarm notification appliances. In addition to audible alerts (i.e. sirens, bells, voice evacuation systems), these might include visual alerts such as strobe lights and LED indicators, and tactile alerts such as vibrating pads. In some systems, different alarm tones or messages are used to distinguish between pre-alarm, evacuation and all-clear states.5. System response and integration
Modern fire detection systems often trigger automated responses, such as notifying emergency services and activating fire suppression systems (e.g. sprinklers and gas suppression). The system may also be integrated with other building management systems (BMS), allowing it to control functions such as fire doors, lifts and HVAC.6. Monitoring and feedback
Throughout the incident, the system continues to monitor alarm status and system health to determine if more detectors are activating – indicating the fire is spreading – or if any devices are offline or faulty. There may also be user input via manual call points or control panel overrides. All events are logged for post-incident analysis and compliance reporting.Integration with other safety systems
Modern fire detection systems are rarely standalone. In complex buildings and critical environments, they are integrated with other safety and building management systems (BMS) to enable automated, coordinated responses that enhance life safety, minimise damage, and support emergency operations.
Fire suppression systems
Fire alarms can trigger sprinkler activation in zoned areas. In addressable systems, the exact location of the fire can be used to activate only the relevant sprinklers. In environments where water damage would be catastrophic, such as data centres or historical archives, a gas suppression system may be used. Foam systems are also commonly used in high-risk areas, such as fuel storage or aircraft hangars, where it is more effective than water.
Emergency lighting and exit signage
The fire alarm system can be programmed to automatically illuminate emergency lighting, exit signs and directional indicators to guide occupants to a safe evacuation route when an alarm is triggered.

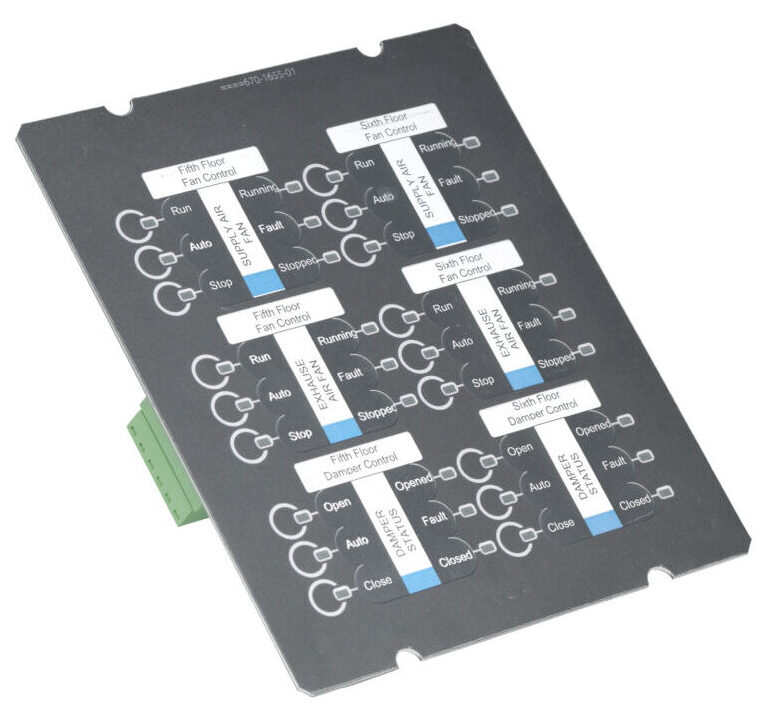

HVAC and smoke control
Integration with these functions allows the fire alarm system to prevent smoke spread by shutting down air handling units, activating extraction fans or closing fire dampers.
Public address and voice evacuation
In large or high-occupancy buildings, it may be necessary to incorporate additional alarm notification systems such as evacuation alert.
Conclusion
As we’ve explored, fire detection alarm systems are far more than just a siren – they are intelligent, interconnected safety networks designed to detect danger early, alert occupants, and coordinate emergency responses. From the moment a sensor detects smoke, heat or a hazardous substance, a cascade of actions is set in motion: signals are processed, alarms are triggered, and integrated systems like sprinklers, ventilation, and emergency lighting are activated.
In today’s complex buildings, fire detection systems are a first line of defence. They not only protect lives but also reduce property damage, business disruption and liability.
